Product Description:
Our large outdoor stand fan is a new product specially developed for outdoor natual ventilation system. Self-designed variable frequency speed control, high efficiency and energy saving gearbox motor drive. It has the advantage of low noise, small volume, lightweight, compact structure and beautiful appearance.
Functional Configuration:
BLADE
Material: Aviation grade aluminium
Coating: Electrophoretic coat
Length : 12FT / 16FT / 20FT / 24FT
MOTOR
Brand: SEW
Enclosure Rating: IP56
INVERTER
Brand: Delta
Enclosure Rating: IP20
Technical Parameters:
| Diameter | 12ft(3.8m) | 16ft(5.0m) | 20ft(6.2m) | 24ft(7.3m) |
| | P38 | P50 | P62 | P73 |
| Pole Height | 3.5-6m | 3.5-6m | 3.5-6m | |
| Motor Power | 1.5KW | 1.5KW | 1.5KW | 1.5KW |
| Air Volume | 11000m³/min | 12050m³/min | 13100m³/min | |
| Maximum Speed | 95RPM | 75RPM | 65RPM | |
| Weight | 230kg | 270kg | 310kg | |
| Full Load Current | 2.4Amps/380v 4.2Amps/220v | 2.4Amps/380v 4.2Amps/220v | 3.5Amps/380v 6.1Amps/220v | 3.5Amps/380v 6.1Amps/220v |
Applications:
The portable outdoor pedestal fan is ideal for cooling workers in open warehouses or construction sites.

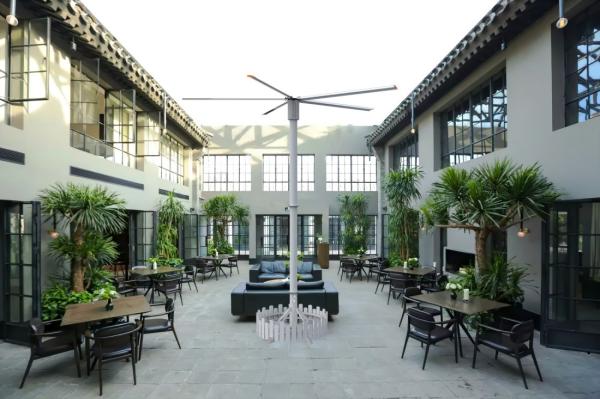

Keep your guests comfortable at outdoor weddings or parties with a weather-resistant standing fan.
The mobile outdoor standing fan is perfect for cooling large tents or open-air venues during summer festivals.
Enjoy a cool breeze on your patio with a freestanding outdoor cooling fan.
This outdoor pedestal air circulator is great for keeping your backyard BBQ area comfortable on hot days.
FAQ:
Q: Are you factory or trading company?
A: We are factory which established more than 12 years.
Q: Where does your fan use in?
A: Ths fan is widely used in fitness center, outdoor wedding venues, industrial factory etc.
Q: Can you provide customized logo?
A: Yes, clients’ own logo or branding words can be customized on the motor.
Q: What is the minimum order quantity for the HVLS Industrial Fan?
A: The minimum order quantity is 10 sets.
Q: What other services can you provide? A: Accepted delivery terms: FOB,CFR,CIF,EXW,DDP,DDU. Accepted payment type: T/T, L/C;
